Submerged Arc Wire Feeder

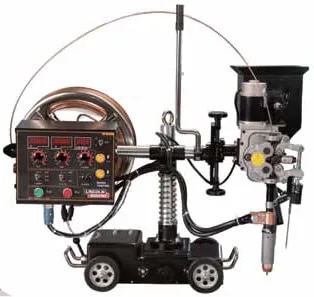

Rover™ Tractor is a self-propelled automatic tractor designed for submerged arc welding. It easily follows the welding joint when moving along the required track sections (sold separately). It can be connected with the POWERPLUS™ 1000HD,Idealarc® DC-1000 and Idealarc® DC-1500. The Rover™ Tractor is sturdy, durable and has a compact profile. It can be used to weld a wide range of thicknesses of mild steel, low alloy steel or stainless steel. The Rover™ Tractor is the ideal choice for welding applications such as shipbuilding, structural steel, boilers and pressure vessels.
Advantage Lincoln:
● Stable travel speed for consistent welding results.
● Ability to preset the wire diameter (2.4 to 4.8mm) for optimized arc startings.
● Easy adjustment of head and torch.
● Standard wire straightener to provide stable feeding with less power loss.
● Duty cycle: (1,000@100%) 1,200A @ 60%
● Easy to understand operation panel.
Design Features
● Ability to preset amps and volts.
● Wire diameter selection helps to optimize the welding performance using diameter-specific welding parameters.
● Fixed point start function allows for precise wire positioning.
● Touch sense function ensures that the wire stops when touching the plate.
The TIG-MAX® works with a brush through which electrical current is passed. With the brush, a cleaning
liquid is absorbed and applied to the areas to be cleaned. The liquid is used to remove the iron oxide stains
formed during welding. The brush converts the electrical current into high temperatures, especially at the
bristle ends. The liquid, which is relatively harmless at room temperature, is heated by the brush to temperatures
at which it becomes much more reactive, resulting in an accelerated chemical action on the stainless
steel surface. Unlike pickling paste, the active ingredients of the cleaning fluid are not inherently harmful
to health. When used correctly, the fluids are non-toxic to the environment.
During the welding process, the pulse parameters are dynamically adjusted to keep constant arc length even when external disturbances occur(such as a changing wire extension length). As a result, the dynamic characteristics and arc stability are enhanced significantly. The uniform pulse frequency makes the welding sound softer, which greatly reduces the noise generated by welding. The strictly control on the one pulse one droplet transfer improves the welding quality and reduces the welding defects.The arc ignition adopts asynchronous curved surface acceleration control. The arc start energy is dynamically adjusted, which can quickly establish and stabilize the molten pool and improve the successful rate of arc ignition. Burn-back control utilizes controllable braking ball cancelling technology to improve the consistency of molten ball size. At the same time,the arc ignition and burn-back time are shortened, speeding up the welding cycle and improving production efficiency.
During the welding process, the pulse parameters are dynamically adjusted to keep constant arc length even when external disturbances occur(such as a changing wire extension length). As a result, the dynamic characteristics and arc stability are enhanced significantly. The uniform pulse frequency makes the welding sound softer, which greatly reduces the noise generated by welding. The strictly control on the one pulse one droplet transfer improves the welding quality and reduces the welding defects.The arc ignition adopts asynchronous curved surface acceleration control. The arc start energy is dynamically adjusted, which can quickly establish and stabilize the molten pool and improve the successful rate of arc ignition. Burn-back control utilizes controllable braking ball cancelling technology to improve the consistency of molten ball size. At the same time,the arc ignition and burn-back time are shortened, speeding up the welding cycle and improving production efficiency.
