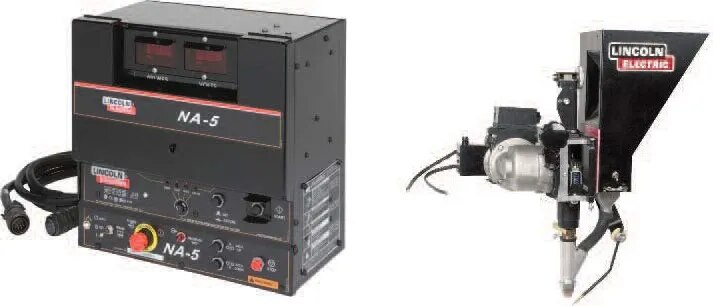

Lincoln Electric NA-5 & NA-5S Controls and Heads

Processes: Flux-Cored, Submerged Arc

Product Number: K356-2

Input Power: 115 VAC 50/60 Hz

Wire Size Range: .035 - 7/32 in. (0.9 - 5.6 mm)

Wire Feed Speed Range: 25-775 ipm (0.6-16.5 m/min)

Net Weight/Dimensions (H x W x D): 41 lbs. (18.6 kg)

12.75 x 18.5 x 22.25 in. (324 x 470 x 565 mm)

APPLICATIONS:

􀀁 Heavy Equipment Fabrication

􀀁 Structural Fabrication

FEATURES

*Operating Versatility - Choice of gear ratios allows use of a wide range of wire sizes and wire feed speeds.

*Compact Units With Excellent Flexibility Mountable on simple fixtures or the most complex automated production lines.

*Rugged Construction - Minimizes downtime and maintenance costs.

RECOMMENDED LINCOLN ELECTRIC POWER SOURCES: Idealarc® DC-600, DC-655, DC-1000, DC-1500 and CV-655.

WHAT’S REQUIRED:

*Nozzle Assembly

*Control Cable

*Weld Power Cable

*Power Source

*Wire Reel(s) and mounting

WHAT’S INCLUDED:

*10 ft. (3.1 m) Control Cable

*Specific Drive Roll Kit with Each Head

*Wire Straightener with Each Head
