Lincoln Electric by Lincoln Electric

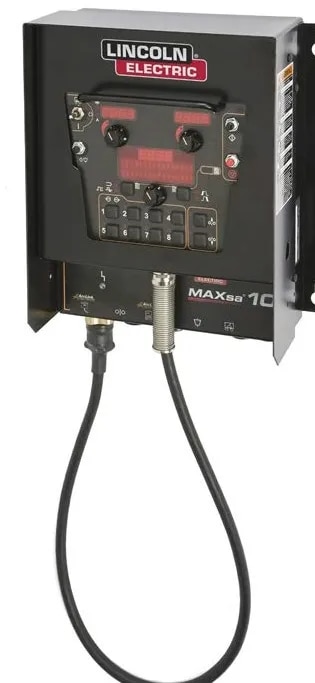

Lincoln Electric MAXSA 10 Controller

Contact Us

Phone Number

08048031990

Please keep 0 before dialling the number.

Email Address neil.shah@weldflowengineers.com

Mon-Thu: 10 AM - 2 PM • Fri: 3 PM - 7AM

Other Website Visit our other website
Address 006 & 033, Vardhini Industrial Estate, Plot no. 203 GIDC Makarpura, Vadodara 390010

Vadodara, India, 390010

Description

ArcLink®-enabled Controller for Power Wave® AC/DC 1000® SD Systems: The MAXsa® 10 controller offers a single monitoring and control point for the entire hard automation welding system. Operators have full control over AC and DC welding parameters and easy PLC interfacing to control fixture travel, timers and other system commands. Key Features: •Severe Duty Ready – The controller is IP23 rated and ready for operation in harsh environments. • Pendant Box – Mount the controller in the standard protective box or remove the pendant for hand-held operation. Extend hand-held operation from 4 feet (1.2 m) up to 100 feet (30.5 m) with an ArcLink® extension cable. • Eight Procedure Memories – Pre-set and save your optimal welding parameters for repeating applications and recall later for fast changeovers. • User-Friendly Controls – Clear digital display and controls make it easy to set weld modes, AC operation, strike/start/end options, travel stop/ start, timers and other parameters. • Limit Control – Apply operator procedure limits or lockout on any or all parameters. • Waveform Control Technology® – Allows the user to choose from a library of pre-programmed weld modes. Parameters for each mode can be adjusted within a limited range to achieve optimal balance between deposition rate and penetration.
