Harris by Harris

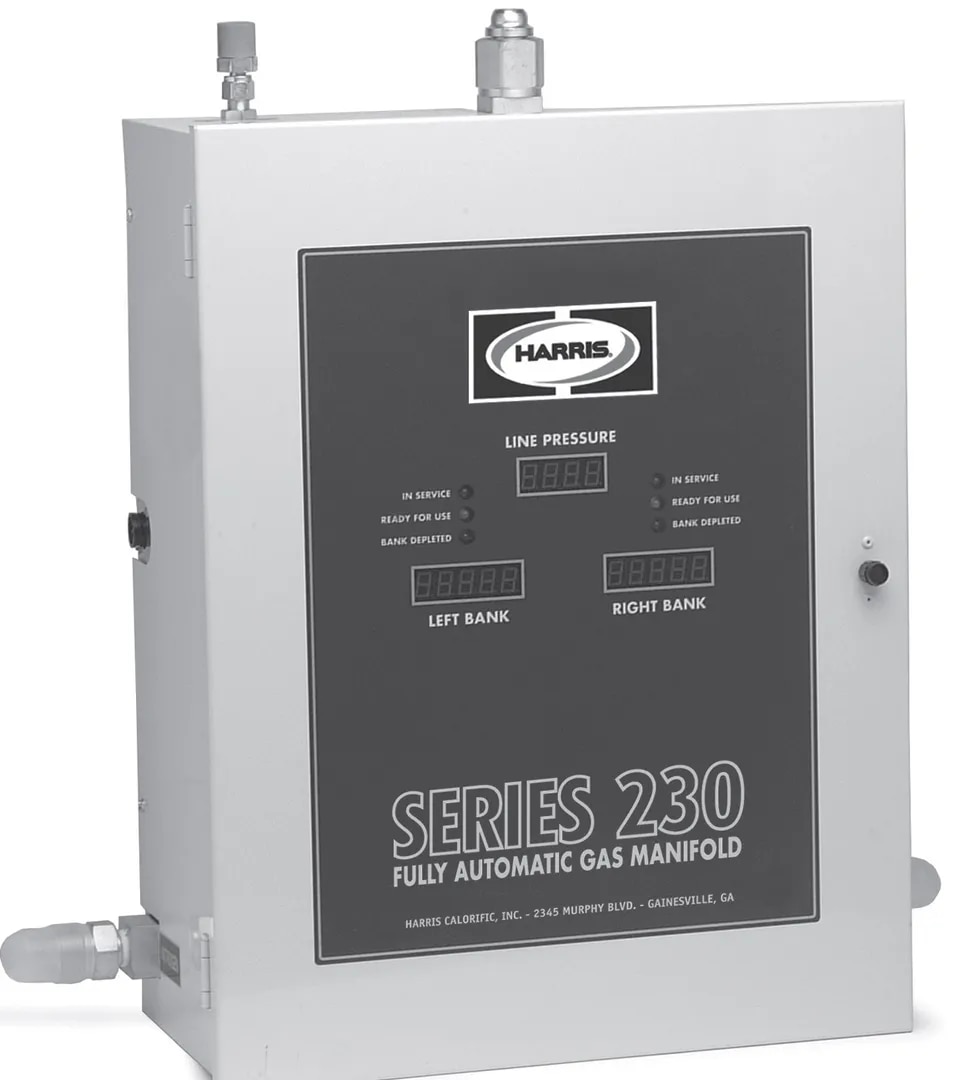

Harris Seriese 230 Manifold

Share with
Share this on :

Description

Product details

FEATURES *Connects to remote alarm systems. Up to 3 amps 30 volts (DC) or 2 amps 250 volts (AC). Visual remote alarm is standard. Audio/Visual alarm optional *Fully Automatic Change-over - no levers to reset, continuous, uninterrupted gas flow. The only manual function is to replace depleted cylinders *Display read-out in PSIG, KPA or BAR *Micro controller monitors all functions and controls change-over *Built to accommodate future cylinder expansion by adding header extensions *Special header configurations available upon request *Optional audio/visual alarm and floor stand available *Manifold Outlet: 1/2” MNPT *Relief Valve Outlet: 1/2” MNPT *24” flexible stainless steel pigtails with check valves *1/2” brass, silver brazed headers *Electrical - 115 volts (AC)
